BoreMaster ZX-1000 Series  High Powered Well Drilling Equipment

Portable, Easy To Use

Electric Start Standard

12 Volt Power Winch Standard

Super Duty Belt Drive, High Torque Transmission

Commercial Duty High Volume Water Swivel

High Powered Gasoline And Diesel Rigs Available

We Manufacture A Variety Of Heavy Duty Mud Pumps, From 6.5HP To 16HP

Built-In Battery And Tool Trey

Rugged, Industrial Duty Remote Throttle Control

Wide Track 13" All Terraign Wheels And Tires

Perfectly Balanced, So Even A Small Child Can Handle It

Drilling On A Slope? No Problem.

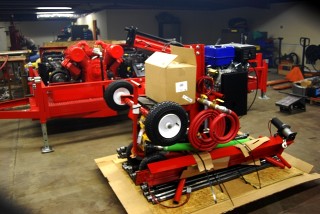

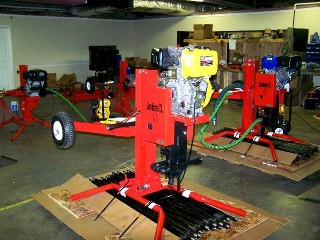

Complete Rig Packages

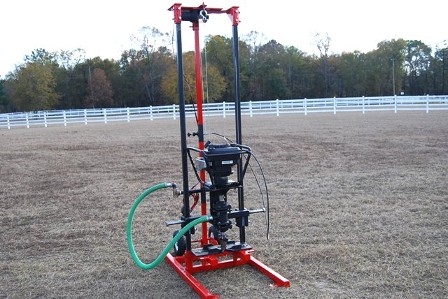

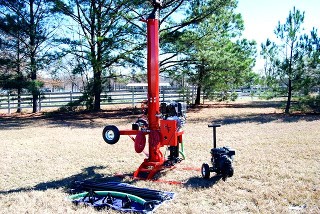

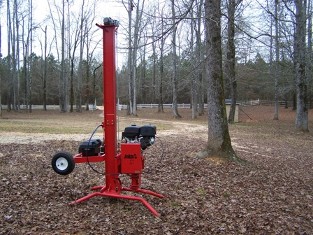

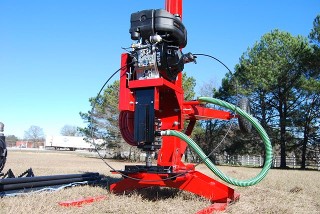

This is our "BoreMaster ZX-1000" Series

Now Exclusively With Kohler Gasoline Engines

13 Feature Patents Pending

This is a strong Commercial Duty Drilling Rig, It features a Kohler Gas, Or 10HP Diesel Powerhead, Belt Drive, Industrial Worm Gear Transmission (28 to 1 Gear Ratio), Industrial Commercial Water Swivel, 12 Volt Power Winch With Remote Control, Built-In Weight Bar Bracket (add up to 200 additional pounds, standard bar bell weights, weights not included), Wide Heavy Duty Ground Gripping Platform, 13-1/2" Tires, Built-In Battery and Tool Trey. The Platform Design Actually Grips The Ground Surface, It Features A Single Solid Beam Adjustable Mast (adjustable from zero to 45 degrees for perfect borehole alignment) Especially Helpful If You Are Drilling On A Slope, And For Geo-Thermal Drilling, Heavy Duty All The Way, No Bars, No Tubes To Rattle And Shake Around. This Rig Provides Smooth And Steady Drilling, It's Made To Last A Lifetime.

The ZX-1000 Rig Weighs In At 384 Pounds, Heavyweight For Tough Drilling, but It Is Perfectly Balanced So Even A Small Child Can Handle It. It Requires Very Little Effort To Move From One Drilling Site To Another, Less Fatigue On The Operator.

The ZX-1000 Package Includes The Stronger Reinforced Commercial Grade 1-1/4" I.D. Drill Stem With The M-50 Wide Thread Couplings. We have this workhorse available in a wide variety of configurations and power levels, from 13HP to 16HP Gas and from 10 HP to 15 HP Diesel Engines, with Electronic Ignitions, Electric Start.

Our New Reverse Break-Out Feature, Along With The Wide Thread Couplings

Makes Adding And Removing Drill Stems Much Easier And Faster.

This Ultimate Drilling Package Includes:

BoreMaster ZX-1000 Power Mast Assembly

NOW Exclusively With Kohler Electric Start, Electronic Ignition, EPA Approved Engine (While Supplies Last)

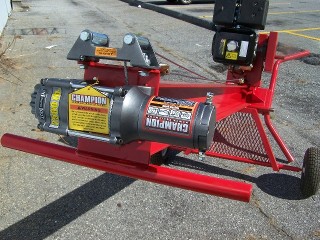

12 Volt Electric Winch With Remote Control

NEW Reverse Break-Out Feature

100 ft. Commercial Wide Thread Drill Stem (1-1/4 I.D.)

3 Heavy Duty Carbide Alloy Earth Bits, 4-1/2", 6-1/2", 9-1/2"

Mud Pump Assembly, 12000 GPH, With Hoses

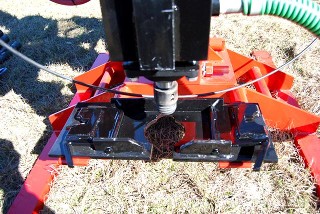

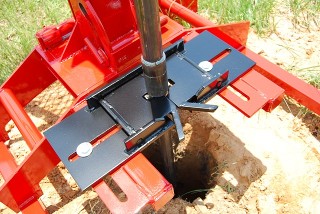

NEW Double Slip Assemblies

On Sale Now: $5200.00 (For A Limited Time)

(Reg. Price: $6245.00)

For More Information Call Toll Free:  1-866-336-3003
